XDEM Brake Drum Refaceing Machine Brake Drum Boring Machine T8370 Track Pin Press Auto Repair Shop

XDEM Brake Drum Refaceing Machine Brake Drum Boring Machine T8370 Track Pin Press Auto Repair Shop

ภาพใหญ่ :  XDEM Brake Drum Refaceing Machine Brake Drum Boring Machine T8370 Track Pin Press Auto Repair Shop

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: XDEM
หมายเลขรุ่น: T8370
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1 ชุด
ราคา: USD4000-6000
รายละเอียดการบรรจุ: ส่งออกแพคเกจ
เวลาการส่งมอบ: 10 วันทำการ
เงื่อนไขการชำระเงิน: L/C, T/T, Western Union, Moneygram, D/P, D/A
สามารถในการผลิต: 1,000 ชุดต่อเดือน
รายละเอียดสินค้า
แบบอย่าง: T8370 ช่วงการประมวลผล: 180-700มม
ความเร็วแกนหมุน: 0-100rpm มอเตอร์แกนหมุน: 3กิโลวัตต์
เครื่องยก: 1.1kw

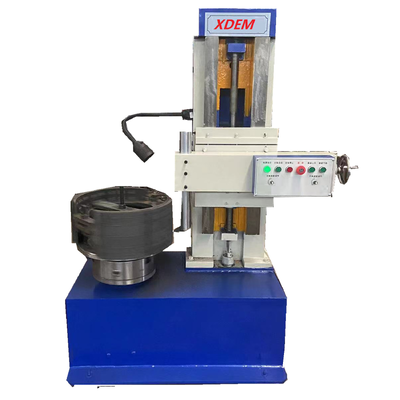

XDEM Brake Drum Boring Machine T8370



It is special for brake drum of large truck/lorry/bus, optional for brake shoe & hubless brake drum.
Whole column design enables, better rigidity than old structure.
Super strong spindle structure, makes boring elliptical deformable/surface hardened brake drum available.

Features:
1. High rigidity. It is integrated with transmission system & stand, so the rigidity is strengthened.
2. Wide machining range. This model is with very big machining diameter among all the brake drum boring machines in china.
3.Perfect operation system. The quick up/down & positive/negative feed increases the working efficiency and the integrated button station achieves convenient operation.
4.Applicable for widel car types. It can machine not only brake drums & brake shoes.
Main paramers:
Model
T8370
Range of Processing Diameter mm
180-700
Rotating Speed of Workpiece r/min
24 / 45 / 80
Working Travel of Slideboard mm
400
Lift Motor Power kW
1.1
Spindle Motor Power kW
3
Weight kg
800
Overall Dimensions mm(L x W x H)
1200 x 1000 x 1815

XDEM Brake Drum Refaceing Machine Brake Drum Boring Machine T8370 Track Pin Press Auto Repair Shop 0XDEM Brake Drum Refaceing Machine Brake Drum Boring Machine T8370 Track Pin Press Auto Repair Shop 1

XDEM Brake Drum Refaceing Machine Brake Drum Boring Machine T8370 Track Pin Press Auto Repair Shop 2
